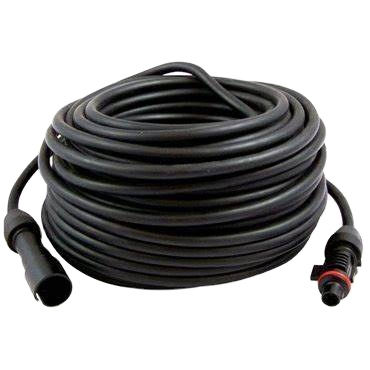

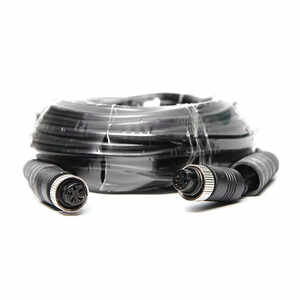

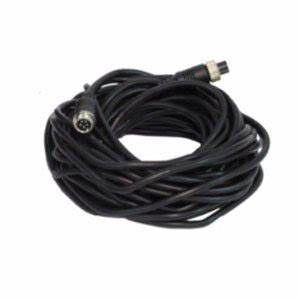

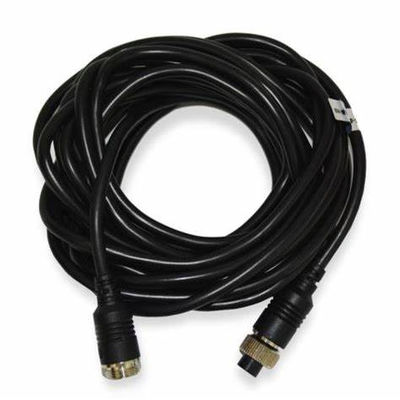

4-Pin Circuit Shield Waterproof Camera Cable Assembly with 5m Length for ADAS Applications
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | 15 |
|
Detail Information |
|||
| Model NO.: | Can Bus Device WIRE HARNESS | Length: | 5m |
|---|---|---|---|
| Process: | Crimping & Over Molding | Connector: | RP SMA Female |
| Conductors Count: | 4 | Part Number: | Camera Cable Assembly |
| Color: | Customized Color | Material: | Teflon Insulation |
| Temperature Resistance: | 200 Degrees | Terminals Material: | Nylon Protection Heat-resistant |
| Terminals Temperature: | 180 Degrees | Waterproof: | Yes |
| Strain Relief: | Yes | Over-molding: | Yes |
| AWG: | American Wire Gauge | ||
| Highlight: | 4-Pin Circuit Shield Camera Cable Assembly,Waterproof Camera Cable Assembly,5m Length Camera Cable Assembly |
||
Product Description
High-Quality Camera Cable Assembly for Advanced ADAS EyeWatch Systems
Product Overview
Premium 4-pin circuit shield vehicle cable with waterproof connectors designed specifically for ADAS EyeWatch systems. This monitor-to-camera extension cable features 5-pin female ends and meets rigorous automotive standards.
Key Features
- Designed for Advanced Driver Assistance Systems (ADAS)
- 4-pin waterproof connector system
- High-quality AWG (American Wire Gauge) wiring
- Compatible with PCB (Printed Circuit Board) and BMS (Battery Management System)
- Custom CAN Bus Device Wire Harness solutions available
Product Variants
| Part Number | Description |
|---|---|
| CAB000083 | PS-C-CAN B Cable |
| CAB000087 | PS-E-EyeWatch Cable |
| CAB000091 | Eye CAN/LOG Y-Cable |
| CAB000092 | Eye CAN Sniffer Cable |
| CAB000124 | SIM3_TO_X3 PANEL BRACKET CABLE |
| CAB000131 | Mobileye 5 to E-box Cable |
| CAB000133 | E-box I/O Signals Cable |
| CAB000165 | Junction Box CAN A - Concatenation Cable |
| CAB000287 | CAN RS232 EPM4 Cable |
| CAB000289 | Mobileye Shield+ Coax - 7m |
| CAB000302 | Mobileye system CAN Sensor cable |
| CAB000315 | Adapter Cable For EVK GPS GNSS 14 pins L 250mm Cable |
| CAB000325 | EPM4X4 Data cable |
| CAB000400 | ME8 Main Cable |
Technical Specifications
Materials
Teflon insulation resistant to 200°C
Terminals
Nylon protection heat-resistant terminals (180°C rated)
Testing
100% tested (tensile, electrical insulation, compression, contact reliability)
Certifications
UL, CE, VDE, CCC, TS16949, ISO9001, IATF16949
Manufacturing Capabilities
- 20+ years wire harness manufacturing experience
- Professional mold development department
- Engineers with 15+ years experience
- Custom OEM/ODM solutions available

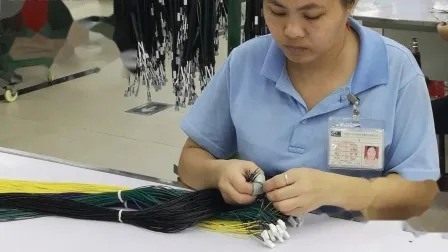

- IPC620 trained workforce for wire processing
Lead Time Reference
| Quantity (PCS) | Estimated Time (Days) |
|---|---|
| 1 - 1000 | 20 |
| 1001 - 5000 | 25 |
| >5000 | To be negotiated |
| Mold/Tooling | 30+ days |
Shipping & Packaging
Packaging can be customized to client specifications. We ship internationally via DHL, UPS, FedEx, TNT, ARAMEX, EMS, or by air/sea according to customer preference.
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When does design work begin?
A: We provide initial sketches for discussion, with detailed design starting after order confirmation.
Q: How are quality issues handled?
A: Our quality team responds within 72 hours to resolve any issues.
Q: Do you have standard products to reduce lead time?
A: Yes, we maintain over 1000 molds and 5000+ standard products for faster prototyping.
