Edgar Auto Harnesses LTD.
Professional Cable Assembly Manufacturer
Quality wire harness & custom cable assembly & automotive wire harness
|Place of Origin:||DongGuan in China|
|Certification:||UL , CSA , IATF16949 , CE , ROHS|
|Model Number:||Edgarcn wireharness|
|Minimum Order Quantity:||3000|
|Packaging Details:||carton size 40cm*30cm*23 cm|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, L/C,|
|Supply Ability:||10000000 per month|
|Product Name:||Edgarcn ; Edgarwireharness||Color:||Black ,White Or Customized|
|Length:||100mm Or Customized||Application:||Automobile ; Industrial Cable Assembly|
|Material:||PVC Black||Certification:||ISO9001 / UL / IATF16949|
automotive electrical harness,
car electrical harness,

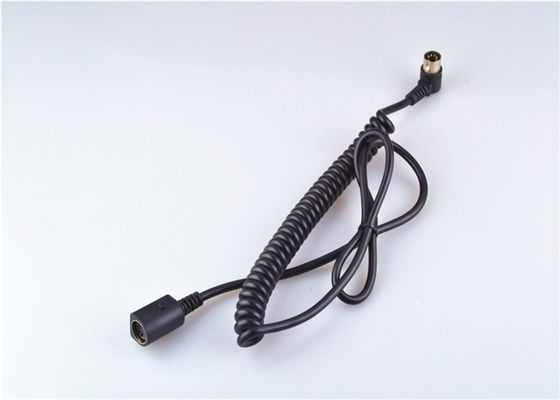

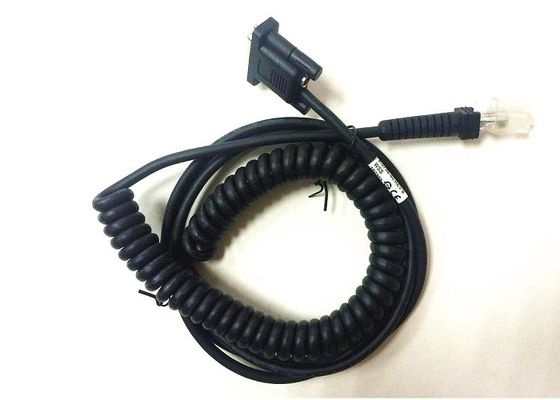

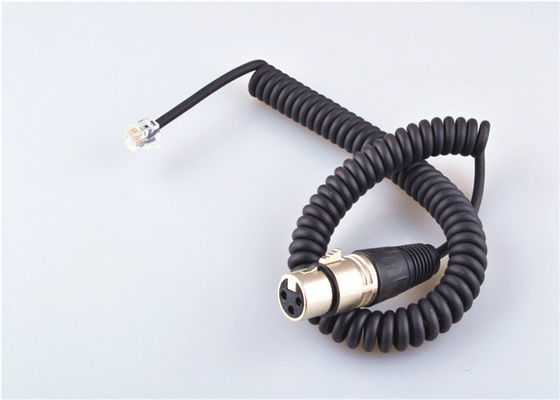

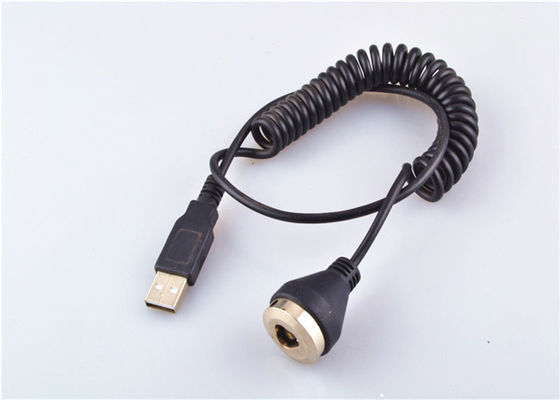

Oem Coiled Electronic Wiring Harness
PRODUCT DETAILS Description
· Rated temperature : 80℃
· Rated voltage: 300/500V
· Bare copper stranded conductor
· PVC insulation
· Figure code is marked on the insulation
· Cotton filled when cabling
· Flame resistant polyurethane jacket
· Excellent stretch ability and flexibility, stretching to 2~3 times normal length, can be held by using special wrapped conductor
· Excellent resistance to oil and abrasion
· Used for power supply circuitry for sections which Perform rotating, up-down and side to side movements
|Cable Type||UL1007#18AWG or optional|
|Length||100mm 500mm or customized|
|Connector 1||Tyco manufacturer|
|Connector 2||Molex manufacturer|
|RoHS compliant||Yes, materials selection strictly complies with UL standards.|
Can accept other
harnesses customized ?
|Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures.|
|More Information||Before the mass production, 2-7 working days to confirm the sample|
Automotive Wire Harness
Engine Wire Harness / Glow plug harness kits / Energy Power cable / Audio & Video Cables / Trailar Harness / Car Cigarette / GPS & ADAS harness kits / Fuse holder / J1962 & J1939 OBD connector and harness / EPC Cable Assembly / Motorcycle wire harness / Electric Vehicle Cable Assembly / Mirror Harness / Lamp Harness / ECU Harness / Buzz for sensor harness
Hybrid Battery wire assembly / Sliding door wireharness / Diesel Valve cover gasket kits / Pump harness
Electric wiring Harness
Gambling Machine Harness / Jamma main Harness / Bill Validators harness / Switchcraft DC / LED/LCD headlamp wire harness / Warning switch / buttons Harness / POG harness / WMS harness / Gaming Machine Button Harness / Control cable / Usb cable / Audio / Video cable / Flat Ribbon Cables / Wire Harnesses / OEM Cables / Wiring Accessories / Power Cords / Gambling Machine Wire Harnesses
Industrial Cable & wire harness
Customer molding cable
IP67 Waterproof Pump harness / IP 68 Injection molding / PMP certification / Waterproof D-sub harness / Sensor Cable / M12 X Coding / M12 A Coding /
Packaging & Shipping
PE bag per pcs. Customized packaging is available.
Carton size: 40cm*30cm*23 cm. Customized carton is available.
Shipping by air: 2-6days.
Shipping by vessel: 10-30days depend on the port of destination.
Edgar Auto Harnesses Ltd., with design offices and over 7260 m2 manufacturing plant, supplies better economical solution and innovative harnesses for many industries like automotive, medical apparatus, electronic information, mechanical automation, alternative fuel and other industries. Edgar has specialized in wire harness over 20 years, certified by IATF/TS16949, ISO9001, UL E468011 and UL E468011, with well-trained employees who’ve been trained for PMP, IPC620, and 5S etc., fully equipped cutting, crimping, soldering, molding, packing and testing instrument etc..Edgar is located in the geometry center of The China Great Bay Area within 3km to Humen port and the products have been exported to America, Europe, Isrea, Japan etc.
Wire Cutting & Stripping
Wire Soldering & Splicing
Custom Injection Molding
Wire Harness Design & Production
Customized Retail Packaging
1. Q: What’s the payment term?
A: Normally, TT 50% before prototype sample preparing or part design, 100% in advanced before delivery. If payment is over $5000 or the big order placed, the payment term could be discussed.
2. Q: How about the delivery?
A: Normally we arrange air express like DHL, UPS, or FedEx etc. for samples, ocean shipping for heavy production. Besides, customers specify also is acceptable.
3. Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order start to drawing then double confirm with client
