24 Volt J1962 Obd Male To Female Extension Cable Customized For Automotive

24 Volt J1962 Obd Male To Female Extension Cable Customized For Automotive

    • 24 Volt J1962 Obd Male To Female Extension Cable Customized For Automotive
    • 24 Volt J1962 Obd Male To Female Extension Cable Customized For Automotive
  • 24 Volt J1962 Obd Male To Female Extension Cable Customized For Automotive

    Product Details:

    Place of Origin: DongGuan in China
    Brand Name: Edgarcn
    Certification: UL , CSA , IATF16949 , CE , ROHS
    Model Number: Edgarcn wireharness

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: negotiate
    Packaging Details: carton size 45*35*25CM
    Delivery Time: 10-15 days
    Payment Terms: T/T, L/C,
    Supply Ability: 10000000 per month
    Contact Now
    Detailed Product Description
    Name: J1962 Cable Length: As Your Need
    Voltage: 24v Applicable Models:Applicable Models: Car
    Model Number: OBD2 OBD-II J1962 Certification: ISO9001 / UL / IATF16949

    Automotive Wiring Harness J1939 9 Pin Deutsch To Obd2 Cable For Truck



    Description

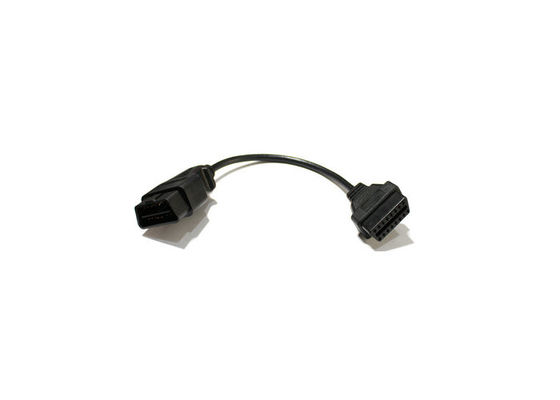

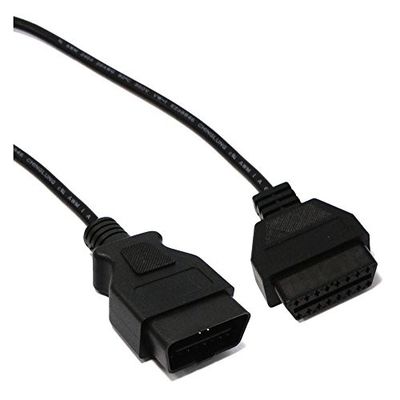

    OBD-II Cable Extender which has a SAE-J1962 male connector 16-pin on one end. At the other end has SAE-J1962 connector 16-pin female.  The function of the cable is the extender.



    Application

    These J1962 OBD2 OBD-II 16 Pin Male to Female Extension Round Cables are usually used to connect GPS trackers, ELM327 OBD2 scanners or OBD2 telematics devices.



    Specification



    Wire 26AWG, pure copper
    Material of OBD2 connectors PA66
    Pin assignment or pin out customized
    Cable length customized
    Pins or terminals copper, nickel-plated or gold-plated
    Contact Resistance 3 ohm max.
    Insulation Resistance 5M ohm min.
    Working Temperature −25℃ ~ +85℃
    Testing 100% open, short and mis-wire testing
    Testing Voltage DC300V 5M ohm/10ms
    Warranty 1 year



    Company Information

    Edgar Auto Harnesses Ltd., with design offices and over 7260 m2 manufacturing plant, supplies better economical solution and innovative harnesses for many industries like automotive, medical apparatus, electronic information, mechanical automation, alternative fuel and other industries. Edgar has specialized in wire harness over 20 years, certified by IATF/TS16949, ISO9001, UL E468011 and UL E468011, with well-trained employees who’ve been trained for PMP, IPC620, and 5S etc., fully equipped cutting, crimping, soldering, molding, packing and testing instrument etc..Edgar is located in the geometry center of The China Great Bay Area within 3km to Humen port and the products have been exported to America, Europe, Isrea, Japan etc.



    Our Services



    Consultancy and design assistance

    Tool making

    Cable and harness manufacturing



    FAQ

    1. Q: What’s the payment term?

        A: Normally, TT 50% before prototype sample preparing or part design, 100% in advanced before delivery. If payment is over $5000 or the big order placed, the payment term could be discussed.



    2. Q: How about the delivery?

        A: Normally we arrange air express like DHL, UPS, or FedEx etc. for samples, ocean shipping for heavy production. Besides, customers specify also is acceptable.



    3. Q: When will you start to help design?

        A: We sketch simple solution for initial discussion, after quotation and order start to drawing then double confirm with client
