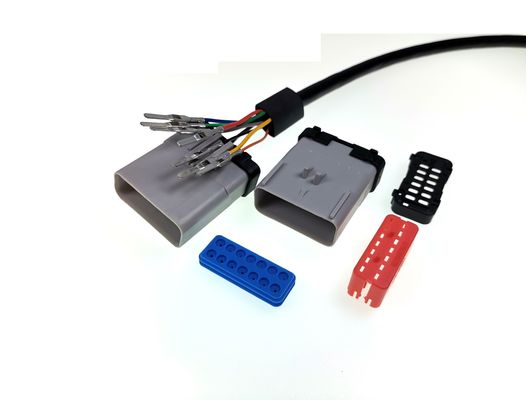

2.8mm Electrical Wire Harness
Product Details:
| Place of Origin: | China |
| Brand Name: | Edgarwireharness |
| Certification: | IATF16949 & UL |
| Model Number: | FCI Apex 2.8mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 |
|---|---|
| Price: | 19.99 usd / pcs |
| Packaging Details: | packing |
| Delivery Time: | 25days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000k per month |
|
Detail Information |
|||
| Temperature Range: | From -40°C To +125°C | Way: | 2/3/4/6/10/14 Way |
|---|---|---|---|
| Color: | Several Colour | Length: | Customized |
| Pin: | Customoizd | Packing: | Customoizd |
| Highlight: | Cockpit Connectors Cable Assemblies,FCI Apex 2.8mm Wire Harness,2.8mm Connectors Cable Assemblies |
||
Product Description

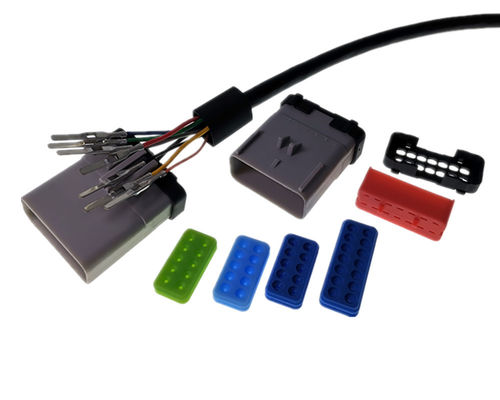

FCI Apex 2.8mm Instrument panel and cockpit connectors cable assemblies electrical wire harness for Customoizd
PRODUCT DETAILS
| Cable Type | Plastic Injection Parts |
| Color | Red/Black/Orange/Purple/Green/or optional |
| Length | 100mm 500mm or customized |
| Connector 1 | FCI Apex 2.8mm |
| Connector 2 | Molex / JST manufacturer |
| RoHS compliant | Yes, materials selection strictly complies with UL standards. |
| Can accept other harnesses customized ? |
Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures. |
| More Information | Before the mass production, 2-7 working days to confirm the sample |
- custom cable assemblies
- electrical wire harness for Customoizd
- Instrument panel and cockpit connectors Coupling connectors
- Apex 2/3/4/6/10/14 way coupling housings for 2.8 mm terminals• 2-3-4-6-10 and 14 position housings
- available• Single row 5.25 mm pitch for2-3-4 position housings
- Double row 5.25 x 6.40 mm pitchfor 6-10 and 14 position housings

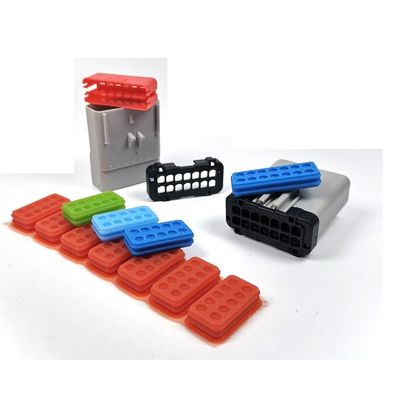

- Terminal position assurance (T.P.A.)
- Connector position assurance(C.P.A.)
- Fixing clip available• Mechanical polarization

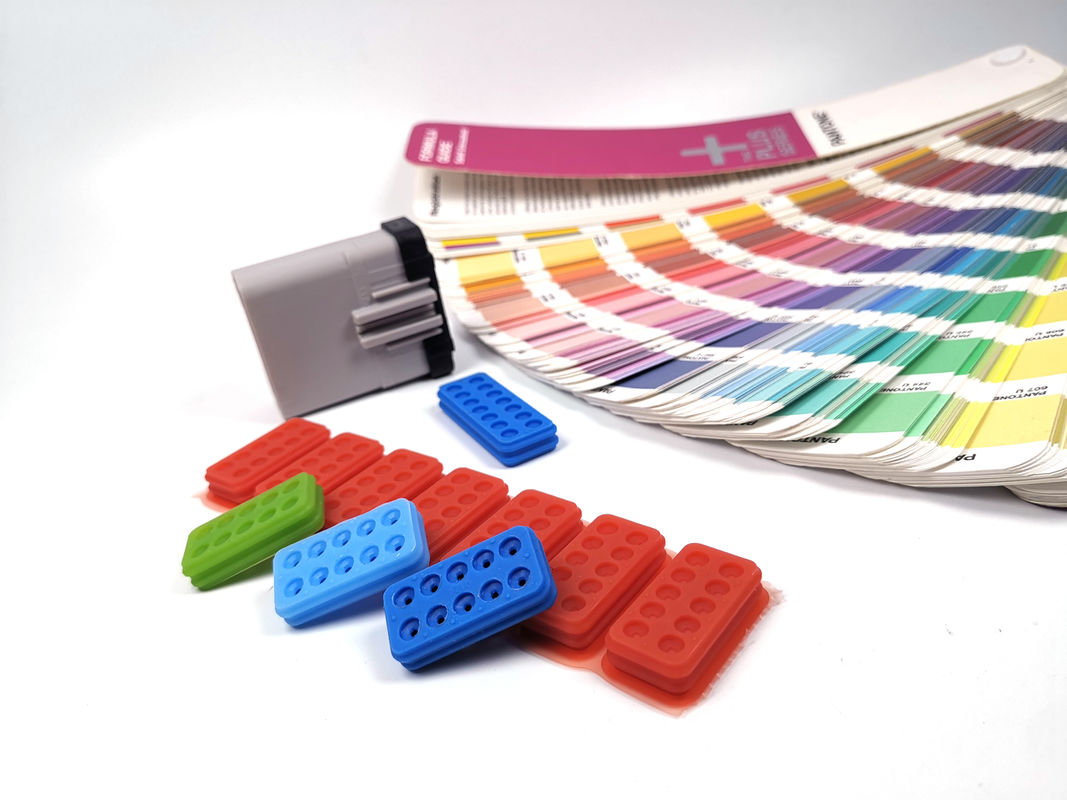

- Several colour codings availableFeatures4
- 50 Performance characteristics•
- Temperature range:from -40°C to +125°C
- Contact retention force: > 90 N
- Contact insertion force: < 15 N
- Connector mating force: < 90 NConstruction
- Housing material: PAConnector compatibility
- Usable terminals:- Apex 2.8 mm female terminals- Apex 2.8 mm male terminals
- Part Numbers No. of position Terminal size Type Colour
- 54200200 2 2.8 mm Female housing Black
- 54200201 2 2.8 mm Female housing Light grey
- 54200202 2 2.8 mm Female housing Dark grey
- 54200203 2 2.8 mm Female housing Natural
- 54200204 2 2.8 mm Male housing Black
- 54200205 2 2.8 mm Male housing Light grey
- 54200300 3 2.8 mm Female housing Black
- 54200301 3 2.8 mm Female housing Light grey
- 54200302 3 2.8 mm Female housing Dark grey
- 54200303 3 2.8 mm Female housing Natural
- 54200304 3 2.8 mm Male housing Black
- 54200305 3 2.8 mm Male housing Light grey
- 54200306 3 2.8 mm Male housing Dark grey
- 54200307 3 2.8 mm Male housing Natural
- 54200400 4 2.8 mm Female housing Black
- 54200402 4 2.8 mm Female housing Light grey
- 54200403 4 2.8 mm Female housing Dark grey
- 54200404 4 2.8 mm Female housing Natural
- 54200405 4 2.8 mm Male housing Black
- 54200406 4 2.8 mm Male housing Light grey
- 54200407 4 2.8 mm Male housing Dark Grey
- 54200408 4 2.8 mm Male housing Natural
- 54200600 6 2.8 mm Female housing Black
- 54200601 6 2.8 mm Female housing Light grey
- 54200602 6 2.8 mm Female housing Dark grey
- 54200603 6 2.8 mm Female housing Natural
- 54200604 6 2.8 mm Male housing Black
- 54200605 6 2.8 mm Male housing Light grey
- 54200606 6 2.8 mm Male housing Dark grey
- 54200607 6 2.8 mm Male housing Natural
- 54201000 10 2.8 mm Female housing Black
- 54201001 10 2.8 mm Female housing Light grey
- 54201002 10 2.8 mm Female housing Light green
- 54201003 10 2.8 mm Female housing Dark green
- 54201004 10 2.8 mm Female housing Orange
- 54201005 10 2.8 mm Female housing Aqua
- 54201006 10 2.8 mm Male housing Black
- 54201007 10 2.8 mm Male housing Light grey
- 54201008 10 2.8 mm Male housing Light green
- 54201400 14 2.8 mm Female housing Black
- 54201401 14 2.8 mm Female housing Light grey
- 54201402 14 2.8 mm Female housing Dark grey
- 54201403 14 2.8 mm Female housing Natural
- 54201404 14 2.8 mm Male housing Black
- 54201405 14 2.8 mm Male housing Light grey
