Edgar Auto Harnesses LTD.
Professional custom cable manufacturer
Quality wire harness| custom cable assembly| automotive wire harness
|Place of Origin:||DongGuan in China|
|Certification:||UL , CSA , IATF16949 , CE , ROHS|
|Model Number:||Edgarcn wireharness|
|Minimum Order Quantity:||3000|
|Packaging Details:||carton size 40cm*30cm*23 cm|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, L/C,, Western Union, MoneyGram, D/A, L/C, D/P|
|Supply Ability:||10000000 per month|

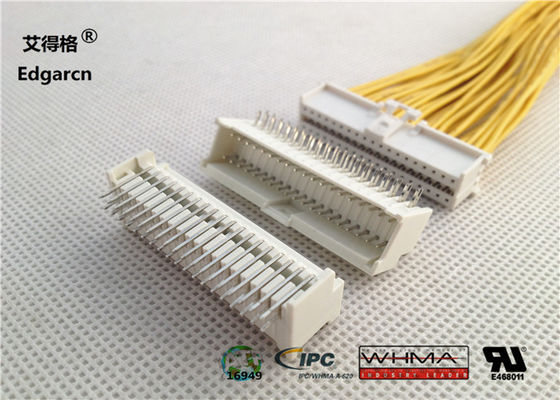

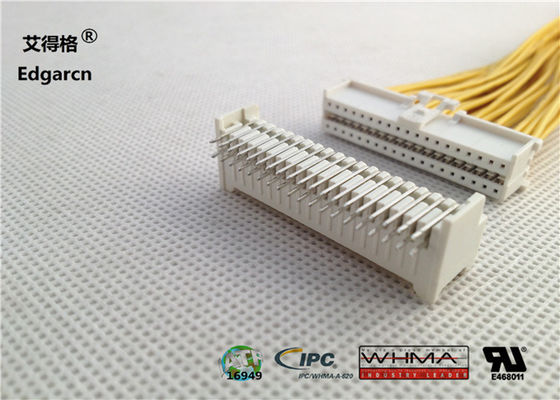

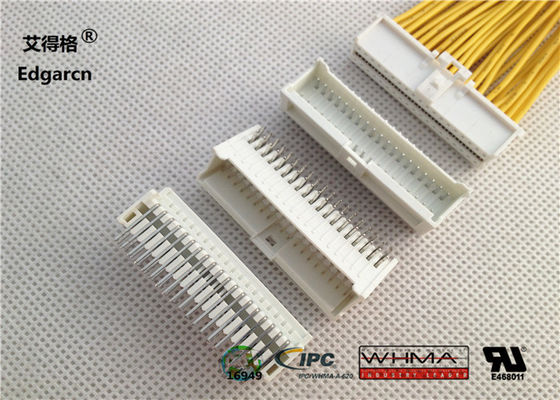

|Product Name:||Molex 2.00MM 38 Pin Pitch MicroClasp||Color:||Black / Red / Gray / Customized|
|Length:||100mm ~156mm Or Customized||Application:||Automobile ; Industrial Cable Assembly ;data Cable|
|Material:||PVC Copper Wire Black & Red & Yellow||Certification:||ISO9001 & UL & IATF16949 2016|
wiring harness parts,
cable harness assembly
|Cable Type||2.00mm Pitch MicroClasp™ Wire-to-Board Receptacle Housing, Positive Lock|
|Length||100mm 500mm or customized|
|Connector 1||Tyco manufacturer|
|Connector 2||Molex manufacturer|
|RoHS compliant||Yes, materials selection strictly complies with UL standards.|
Can accept other
|Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures.|
|More Information||Before the mass production, 2-7 working days to confirm the sample|
0513534000 513534000 51353-4000 Status: Active Overview: MicroClasp™ Wire-to-Board System
Description: 2.00mm Pitch MicroClasp™ Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 40 circuits
Current Rating:3.0A AC/DC
Material:Nylon 66 UL94V-0 Color:White
Applicable Terminal:56134-9000 (Chain) 56134-9100 (Loose)
Wire Range:22AWG~28AWG 0.20MM2~0.40MM2
Terminal Material:Phos Bronze
Stamping after tin plated
Automotive Wire Harness
Electric wiring Harness
Industrial Cable & wire harness
Packaging & Shipping
PE bag per pcs. Customized packaging is available.
Carton size: 40cm*30cm*23 cm. Customized carton is available.
Shipping by air: 2-6days.
Shipping by vessel: 10-30days depend on the port of destination.
Edgar Auto Harnesses Ltd., with design offices and over 7260 m2 manufacturing plant, supplies better economical solution and innovative harnesses for many industries like automotive, medical apparatus, electronic information, mechanical automation, alternative fuel and other industries. Edgar has specialized in wire harness over 20 years, certified by IATF/TS16949, ISO9001, UL E468011 and UL E468011, with well-trained employees who’ve been trained for PMP, IPC620, and 5S etc., fully equipped cutting, crimping, soldering, molding, packing and testing instrument etc..Edgar is located in the geometry center of The China Great Bay Area within 3km to Humen port and the products have been exported to America, Europe, Isrea, Japan etc.
Wire Cutting & Stripping
Wire Soldering & Splicing
Custom Injection Molding
Wire Harness Design & Production
Customized Retail Packaging
1. Q: What’s the payment term?
A: Normally, TT 50% before prototype sample preparing or part design, 100% in advanced before delivery. If payment is over $5000 or the big order placed, the payment term could be discussed.
2. Q: How about the delivery?
A: Normally we arrange air express like DHL, UPS, or FedEx etc. for samples, ocean shipping for heavy production. Besides, customers specify also is acceptable.
3. Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order start to drawing then double confirm with client
