Blue / Green Custom Wiring Harness For Trucks , Ip68 9 Pin Deutsch Cable

Blue / Green Custom Wiring Harness For Trucks , Ip68 9 Pin Deutsch Cable

Blue / Green Custom Wiring Harness For Trucks , Ip68 9 Pin Deutsch Cable
video
Blue / Green Custom Wiring Harness For Trucks , Ip68 9 Pin Deutsch Cable
Product Details:
Place of Origin: DongGuan in China
Brand Name: Edgarcn
Certification: UL , CSA , IATF16949 , CE , ROHS
Model Number: Edgarcn wireharness
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Price: negotiate
Packaging Details: carton size 45*35*25CM
Delivery Time: 10-15 days
Payment Terms: T/T, L/C,
Supply Ability: 10000000 per month
Contact Now
Detailed Product Description
Name: J1939 Data Link Cable Length: As Your Need
Certification: ISO9001 / UL / CUL / IATF16949 Product Usage: Truck

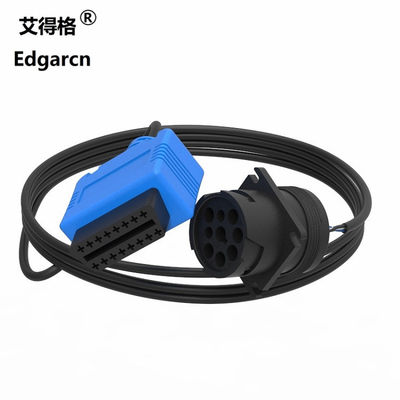

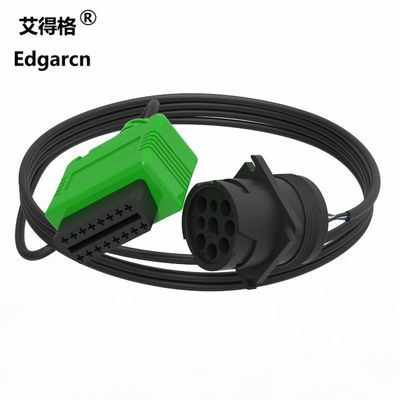

Model: J1939 9 Pin Deutsch To Obd2 Cable Color: Blue / Green Molding
High Light:

auto wiring harness

,

vehicle wiring harness

Automotive Wiring Harness J1939 9 Pin Deutsch To Obd2 Cable For Truck

Specification
  1. Operating at temperatures -40℃ to +125℃, no Cracking, Chipping or leaking after 20 test cycles from -40℃~+125℃.

  2. No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000Hz in each of the three mulually perpendicular planes for 2 hours. Force testing report as below shows

  3. IP68 rating, waterproof withstand immersion under 1.2 meter of water for 24 hours.



Description

The J1939 9 Pin Deutsch To Obd2 Cable series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, which is designed to be a faster, easier, trouble free assembly diagnostic connector in heavy-duty industry like truck, bus, cross-country vehicle,crane and forklift etc. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants encountered.







EDG-HD10-9-1939P-P080

Terminal type Wire type CONT. Retention REF crimp tensile Failue Model
1060-16-0122 UL 1007 18# 20 LBS >20 LBS Wire damage
1060-16-0122 UL 1007 16# 20 LBS >25 LBS Grommet broken



EDG-HD16-9-1939S-P080

Terminal type Wire type CONT. Retention REF crimp tensile Failue Model
1060-16-0122 UL 1007 18# 20 LBS >20 LBS Wire damage
1060-16-0122 UL 1007 16# 20 LBS >25 LBS Grommet broken






Company Information

Edgar Auto Harnesses Ltd., with design offices and over 7260 m2 manufacturing plant, supplies better economical solution and innovative harnesses for many industries like automotive, medical apparatus, electronic information, mechanical automation, alternative fuel and other industries. Edgar has specialized in wire harness over 20 years, certified by IATF/TS16949, ISO9001, UL E468011 and UL E468011, with well-trained employees who’ve been trained for PMP, IPC620, and 5S etc., fully equipped cutting, crimping, soldering, molding, packing and testing instrument etc..Edgar is located in the geometry center of The China Great Bay Area within 3km to Humen port and the products have been exported to America, Europe, Isrea, Japan etc.



Our Services



Consultancy and design assistance

Tool making

Cable and harness manufacturing



FAQ

1. Q: What’s the payment term?

    A: Normally, TT 50% before prototype sample preparing or part design, 100% in advanced before delivery. If payment is over $5000 or the big order placed, the payment term could be discussed.



2. Q: How about the delivery?

    A: Normally we arrange air express like DHL, UPS, or FedEx etc. for samples, ocean shipping for heavy production. Besides, customers specify also is acceptable.



3. Q: When will you start to help design?

    A: We sketch simple solution for initial discussion, after quotation and order start to drawing then double confirm with client
