Lumberg Power Connector with 2.54MM IDC Flat Cable Assembly for PCB Wireharness Manufacturer with WHMA/IPC620
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | edgarcn |
| Certificação: | IATF16949 TS16949 UL |
| Número do modelo: | arnês de arame espelhado para caminhão |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10.000 |
|---|---|
| Preço: | CN¥61.46-69.21 |
|
Informação detalhada |
|||
| Tipo de conector: | Lumberg 3515 Rast 2,5mm | Percurso de contacto: | 2,5mm |
|---|---|---|---|
| Tipo de cabo: | 2.54mm IDC Flat Cable | Tipo de montagem: | Ganchos de travamento de PCB |
| Tecnologia: | Deslocamento de Isolamento (IDT) | Opção de teclado: | Com/sem costela chaveada |
| Configuração lateral: | Lados fechados | Tipo de condutor: | Condutores individuais/cabo de fita |
| Corrente de margarida: | Possível (3515-1) | Pedido Mínimo: | 500pcs/order |
| Tempo de espera: | 20-25 dias (1-5000 unidades) | Comprimento personalizado: | Sim |
| Métodos de envio: | DHL, Fedex, UPS, TNT, Postal | Serviço de concepção: | Disponível para ODM/OEM |
| Disponibilidade de mofo: | Mais de 1000 conjuntos disponíveis | ||
| Destacar: | Lumberg power connector with IDC cable,PCB wire harness with 2.54MM spacing,WHMA/IPC620 compliant electronic wiring harness |
||
Descrição de produto

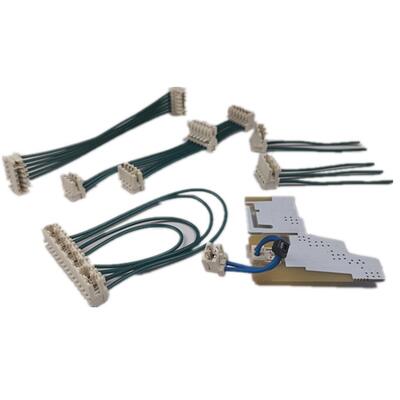

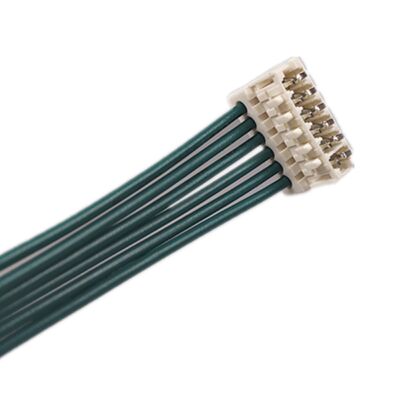

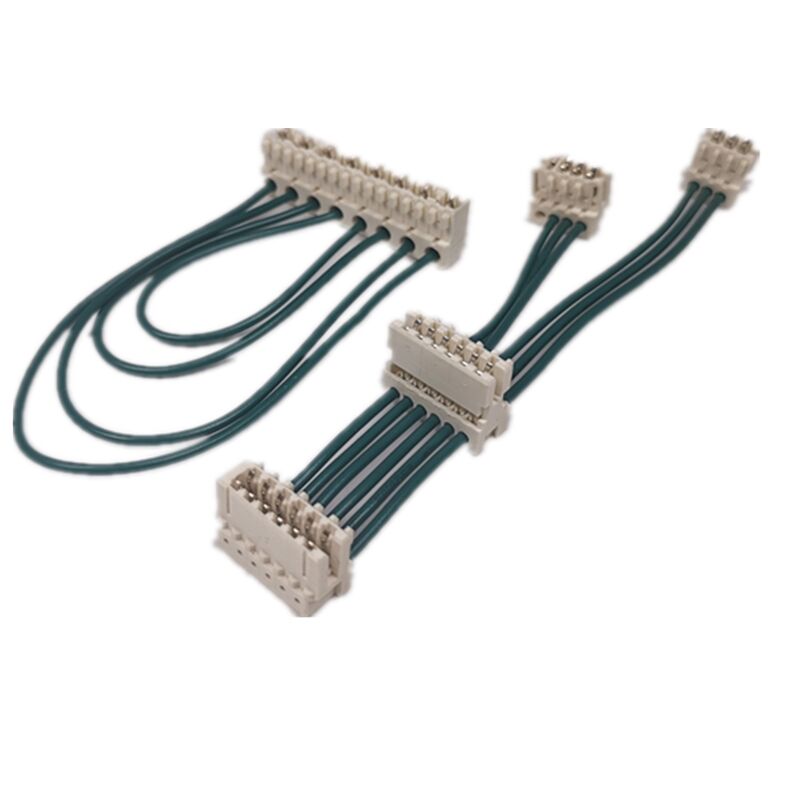

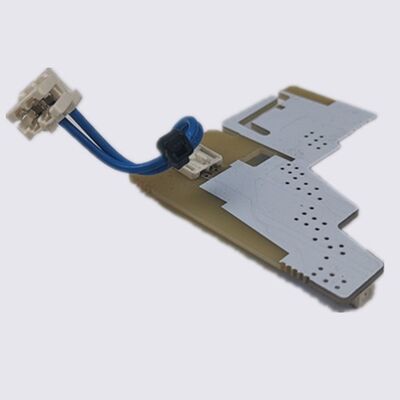

Lumberg Power Connector with 2.54MM IDC Flat Cable Assembly
RAST 2.5mm power connector with 2.54MM IDC flat cable assembly for PCB wire harness manufacturing, compliant with WHMA/IPC-620 standards.
Product Variants
3515
RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for individual conductors. Contact pitch: 2.5 mm.
3515-1
RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for ribbon cable, daisy chain possible. Contact pitch: 2.5 mm.
3515-2
RAST 2.5 connector for direct mating, insulation displacement technology (IDT), with locking on printed circuit board by means of locking hooks, alternatively with or without keying rib and closed sides, for ribbon cable. Contact pitch: 2.5 mm.
Company Information
Packaging & Lead Times
Packaging details can be customized according to client specifications. Standard lead times are as follows:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, EMS and others. Customers can choose shipping by air, sea or other methods. Payment for samples/mass products required before delivery, with special arrangements for orders above 5000 USD.
Product Range

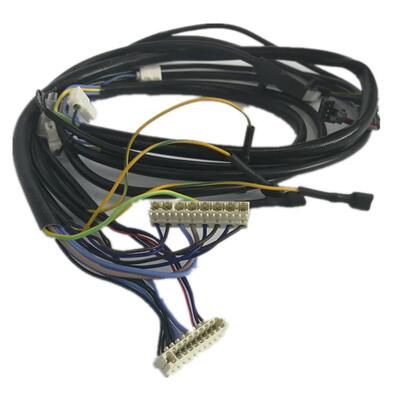

Our product range includes: Molex/Tyco/JST standard connector wire harness, USB data cable, Modular RJ45 Cat cable, Power DC cable, D-sub data cable, Mini Din, RCA cable and IDC flat ribbon cable.
Frequently Asked Questions
Q: Can you help to design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial concept sketches for discussion. After quotation and order placement, we proceed with detailed design drawings for client confirmation.
Q: What if quality issues occur when customer discovers them?
A: Our quality and engineering team responds to quality issues within 72 hours. We are committed to long-term partnerships and providing excellent service.
Q: Do you have any standard products to reduce lead time for prototypes and tooling costs?
A: Yes, we have developed over 1000 sets of molds, many of which can be used directly for customer projects. With over 20 years of specialization, we offer more than 5000 wire harness products.
