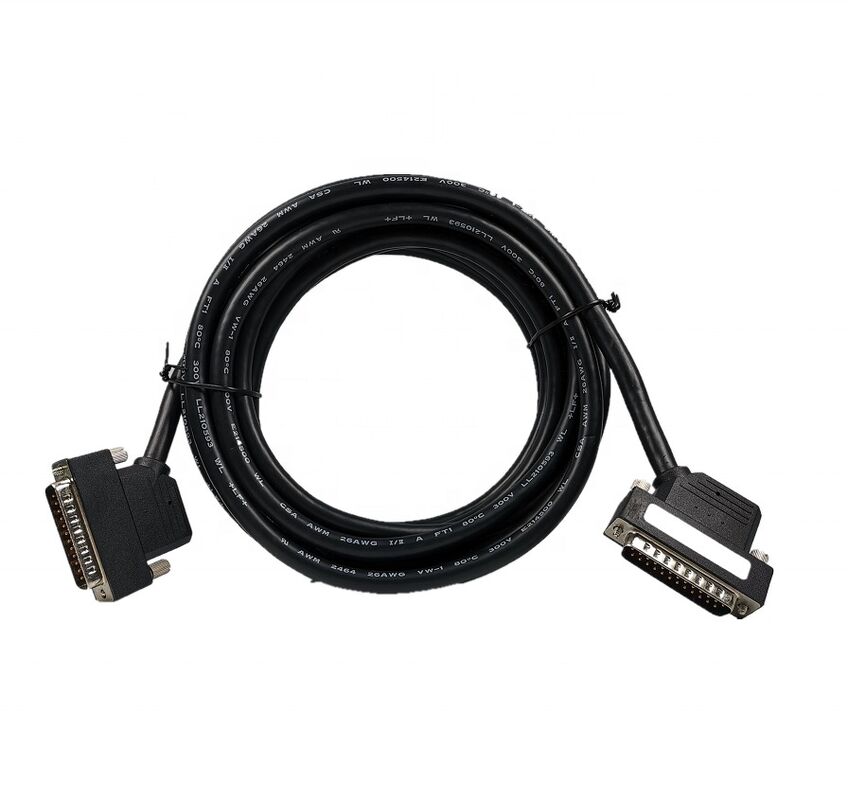

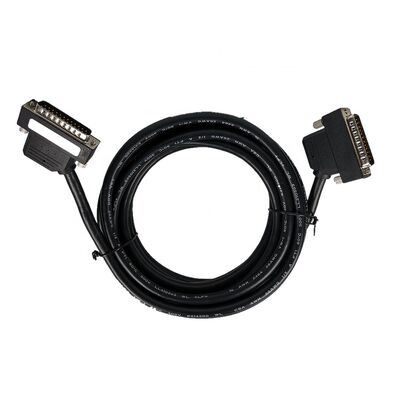

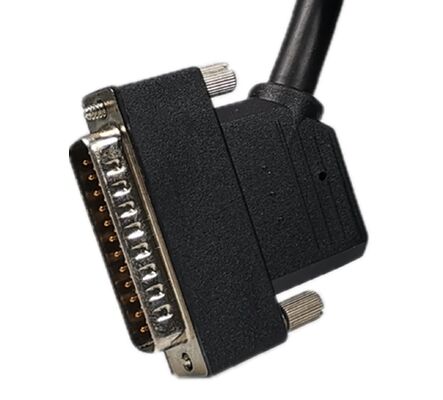

D-SUB 25pos Female to Male Connector & Cable Assemblies UL & IATF16494 Manufactory with WHMA/IPC620
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Edgarcn |
| Certificação: | IATF16949 |
| Número do modelo: | 90 graus D-Sub cabo |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 |
|---|
|
Informação detalhada |
|||
| Tipo de conector: | D-SUB 25 pos | Gênero: | Masculino & fêmea |
|---|---|---|---|
| Comprimento: | 101mm | Tamanho da casca: | DB 25 pinos |
| Impermeável: | Sim | Marca de conector: | TE, MOLEX, JST, AMP |
| Sobre ângulos de moldagem: | 180°, 45°, 90° | Solução EMI: | Folha de alumínio e cobre |
| Tipo de parafuso: | 4-40 UNC | Tipo de montagem: | Montagem frontal e montagem traseira |
| Tipo de cabo: | cabo de dados | Tipo de montagem: | D-sub e sobremoldagem |
| Conformidade padrão: | WHMA/IPC620 | Tempo de espera: | 20-25 dias |
| Opções de envio: | DHL, UPS, FedEx, TNT, Aramex, EMS | ||
| Destacar: | D-SUB 25pos female to male connector,UL certified D-SUB cable assembly,IATF16494 compliant wiring harness connector |
||
Descrição de produto
D-SUB 25pos Female to Male Connector & Cable Assemblies
UL & IATF16494 Certified Manufacturing with WHMA/IPC620 Standards
D-Sub Series
D-Sub connectors are utilized across a wide range of applications from consumer electronics to satellite equipment. Shell sizes are designated by letters A through E, with DB representing 25-pin configurations. Our D-Sub product line includes data cables, serial cables, null modem cables, connectors, high-density cables, RS232 serial cable assemblies, printer cables, switch boxes, adapters, gender changers, and connectors.
D-Sub connectors are utilized across a wide range of applications from consumer electronics to satellite equipment. Shell sizes are designated by letters A through E, with DB representing 25-pin configurations. Our D-Sub product line includes data cables, serial cables, null modem cables, connectors, high-density cables, RS232 serial cable assemblies, printer cables, switch boxes, adapters, gender changers, and connectors.
Key Features and Solutions
- Assembly D-sub and over molding solutions with 180°, 45°, and 90° line out configurations
- Standard molds available to reduce development costs and lead times
- EMI (Electro Magnetic Interference) solutions using aluminum and copper foil shielding
- Customized screw solutions including front mount and rear mount options with standard 4-40 UNC threading
Edgar Service 4
Company Information
Packaging and Delivery
Packaging details can be customized according to client specifications.
Standard Lead Times
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, EMS and others. Customers can choose air, sea, or other shipping methods as required.
Payment for samples and mass production orders required before delivery. For amounts above 5000 USD, specific arrangements can be discussed.
Product Range
Our comprehensive product line includes:
Molex/Tyco/JST standard connector wire harnesses, USB data cables, Modular RJ45 Cat cables
Power DC cables, D-sub data cables, Mini Din, RCA cables, and IDC flat ribbon cables
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly manufacturing since 1999.
Q: When will you start to help design?
A: We provide initial concept sketches for discussion. After quotation and order placement, we proceed with detailed drawings and final design confirmation with the client.
Q: What if quality issues occur when customer discovers them?
A: Our quality and engineering teams respond to quality issues within 72 hours. We are committed to long-term partnerships and providing exceptional service.
Q: Do you have standard products to reduce lead times and tooling costs?
A: Yes, we have developed over 1000 sets of molds, many of which can be used directly for customer projects. With over 20 years of specialization in wire harness manufacturing, we offer more than 5000 product variations.
