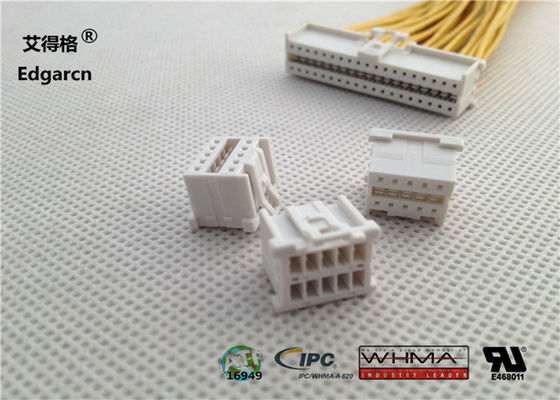

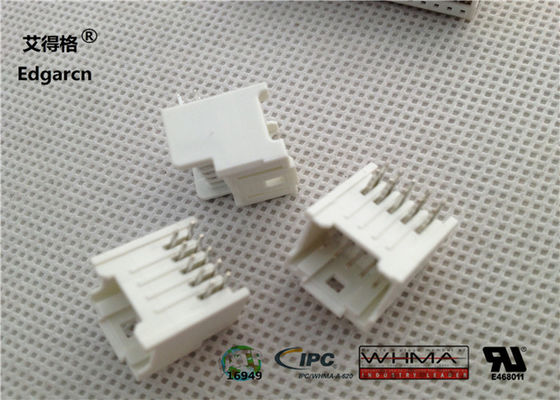

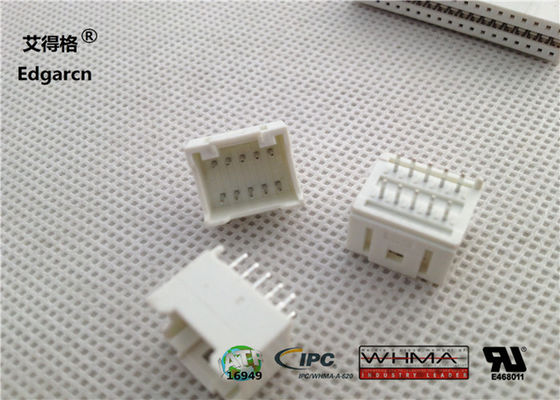

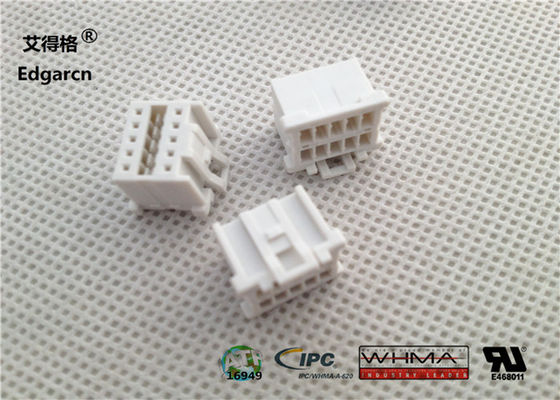

22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector

22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector

22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector
video
22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector
Product Details:
Place of Origin: DongGuan in China
Brand Name: Edgarcn
Certification: UL , CSA , IATF16949 , CE , ROHS
Model Number: Edgarcn wireharness
Payment & Shipping Terms:
Minimum Order Quantity: 3000
Price: negotiate
Packaging Details: carton size 40cm*30cm*23 cm
Delivery Time: 10-15 days
Payment Terms: T/T, L/C,, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability: 10000000 per month
Contact Now
Detailed Product Description
Product Name: Molex 2.00MM 10 Pin Pitch MicroClasp Color: Black / Red / Gray / Customized
Length: 110mm ~210mm Or Customized Application: Automobile ; Industrial Cable Assembly ;data Cable
Material: PVC Copper Wire Yellow Certification: ISO9001 & UL & IATF16949 2016
High Light:

wiring harness parts

,

cable harness assembly


PRODUCT DETAILS
Cable Type  2.00mm Pitch MicroClasp™ Wire-to-Board Receptacle Housing, Positive Lock
Color Red/Black/Orange/Purple/Green/or optional
Length 100mm 500mm or customized
Connector 1 Tyco manufacturer
Connector 2 Molex manufacturer
RoHS compliant Yes, materials selection strictly complies with UL standards.

Can accept other
harnesses customized ?

Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures.
More Information Before the mass production, 2-7 working days to confirm the sample

Part Number:

0513534000 513534000 51353-4000 Status: Active Overview: MicroClasp™ Wire-to-Board System

Description: 2.00mm Pitch MicroClasp™ Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 40 circuits
Current Rating:3.0A AC/DC
Material:Nylon 66 UL94V-0 Color:White

Q'ty:1000Pcs/Bag
Applicable Terminal:56134-9000 (Chain) 56134-9100 (Loose)
Wire Range:22AWG~28AWG 0.20MM2~0.40MM2
Ins.Range: 0.90MM~1.70MM
Terminal Material:Phos Bronze
Stamping after tin plated
Terminal Thickness:0.15MM
Q'ty:10000/Pcs/Reel
56134-9000






Industrial Cable & wire harness
22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector 0

    Customer molding cable

22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector 1

    Connector System

   22awg - 28awg Molex 10 Pin Connector , White Receptacle Housing Connector 2


Packaging & Shipping
 PE bag per pcs. Customized packaging is available.
 Carton size: 40cm*30cm*23 cm. Customized carton is available.
 Shipping by air: 2-6days.
 Shipping by vessel: 10-30days depend on the port of destination.



Company Information

       Edgar Auto Harnesses Ltd., with design offices and over 7260 m2 manufacturing plant, supplies better economical solution and innovative harnesses for many industries like automotive, medical apparatus, electronic information, mechanical automation, alternative fuel and other industries. Edgar has specialized in wire harness over 20 years, certified by IATF/TS16949, ISO9001, UL E468011 and UL E468011, with well-trained employees who’ve been trained for PMP, IPC620, and 5S etc., fully equipped cutting, crimping, soldering, molding, packing and testing instrument etc..Edgar is located in the geometry center of The China Great Bay Area within 3km to Humen port and the products have been exported to America, Europe, Isrea, Japan etc.



Edgar Services

 Wire Cutting & Stripping
 Wire Termination
 Wire Soldering & Splicing
 Custom Injection Molding
 Sample Prototyping
 Wire Harness Design & Production
 Customized Retail Packaging
 Custom Fabrication
 OEM/ODM


FAQ

1. Q: What’s the payment term?
    A: Normally, TT 50% before prototype sample preparing or part design, 100% in advanced before delivery. If payment is over $5000 or the big order placed, the payment term could be discussed.

2. Q: How about the delivery?
    A: Normally we arrange air express like DHL, UPS, or FedEx etc. for samples, ocean shipping for heavy production. Besides, customers specify also is acceptable.

3. Q: When will you start to help design?
    A: We sketch simple solution for initial discussion, after quotation and order start to drawing then double confirm with client
